| Tank Gauges and Alarms |
B & K Dipsticks
Are available in two types full length or folding. We carry them in stock,in 14' and 16', full length with no name or phone number on them. You may order them with your name and phone number on them in quantities of 300 or more, however allow six week delivery.Standard Full Length Metric Stick Gauge Single Fold Locking Metric Stick Gauge Fuelpoint Systems Smart Probe Capacitance Tank Gauge
Standard Lengths from bin (15.25cm) to 19 ft (5.8m) [19 ft (5.88 m) to 40 ft (12.2 m) available on special order].
Probe with no moving parts contained in rigid casing with 1 1/4 in (3.18 cm) MNPT Connector.
Probe / Body / Casing Manufactured from 316 Stainless Steel/ Teflon.
Operating Temperature +120°F (50°C) to -40° (-40°C).
Low Power Usage - suitable for battery operation 12 vdc to 28 vdc.
Multiple Fluid operation including water and non-conductive fluids, Bitumen, Butane*, Diesel, Ethanol, Gasoline, Jet Fuel, Kerosene, Lube Oil, Methanol, Propane*, Saline Solutions, Etc. Consult Factory for Specific Applications.
* Require optional pressure probe.Explosion Proof Zone 1 Division 1 Classes B, C & D.
Options to Stand Alone Gauge
Display at Tank - 4 Segment bright LED Display.Relay Board /w 4 standard Signal Relays, Form A Normally Open or Normally Closed, 120 mA 300 V AC/DC with 4 trip points for overfill, high, low level alarm, motor, pump, signal or valve operation.
Relay Board Upgrade 8 A, 80 A surge (requires standard relay board).
Temperature and Water Option.
RS 485 Communications.
PC Software Options.
PC Interface Options.
Pressure Vessel Probe Option (High pressure up to 3000 psi).
24 Hour Help Desk /w 12 months unlimited Telephone Support
12 Months return to factory repair or replacement Warranty.
Designed and manufactured in Canada!
• Double Plastic Dome is almost indestructible.
• Gallon Readout available for standard 275 gal. oval tanks.
• All internal tank parts available in stainless steel.
• Repair parts available
The Gauge Guard for above
• Easy installation
• Set for high level, low level or leak detection alarm
• Lithium battery
• Can add on existing gauges
• Weather resistant
• Remote options available

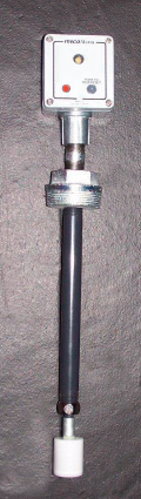

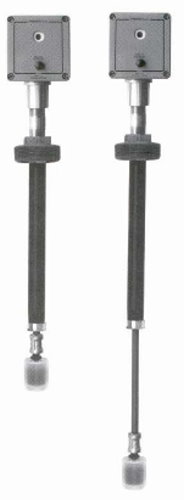

mecoAlarm™Normal and ExtendedThe mecoAlarm™ is an inexpensive battery operated, Intrinsically Safe Overfill Alarm offering the following features• Certified Intrinsically Safe to ANSI/UL 913.
• Meets NFPA 30 A, UL 2244 and UFC Requirements.
• Assists in Overfill Prevention.
• Loud (100 db) Pulsating Alarm to alert the operator when the product level reaches the preset level.
• 9 VDC Battery Powered (Battery not included. Lithium battery is recommended in all installations for extended life.)9 V Alkaline for -4° to +130° F operation.• No Power consumption in the "Non-alarm" condition provides years of life from a Lithium Battery.
9 V Lithium for -40° to +158° F Operation
• Ultra low power consumption after Alarm reset.
• Ultralife® 9 V Lithium batteries available at Radio Shack.
• Use on protected or standard tanks.
• Easy field retrofit. No conduit required.
• Optional connections for 12 V Intrinsically Safe line power supply.
• Single push button switch for test before filling tank and to reset Audible Alarm after the high level alarm point is reached.
• Adjustable Float Switch to accommodate a wide range of high level alarm point settings.
• Float Switch adjustment range is from 12 to 20 inches. Further adjustments can be accomplished using pipe nipples.
• The mecoAlarm™ case has provision inside the cover for wall mounting. This means the case (Alarm) can mounted up to 500 feet from the float switch assembly, utilizing conduit and wiring.
