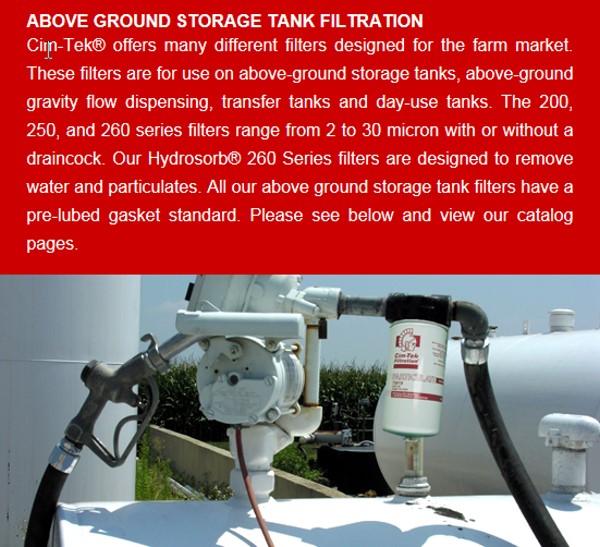

Cim-Tek 200E and 200AE Series
| • Particulate Filtration |
| • For use with Diesel, Gasoline and Ethanol or Methanol Blends up to 10% |
| • Use with low-volume commercial power pumps |
| • For use on above ground storage tanks, above ground gravity flow dispensing, transfer tanks, day-use tanks |
| • 18 usgpm (68.1 lpm) maximum flow |
| • 50 psi (3.4 bar) maximum working pressure |
| • Resin-impregnated cellulose media |
| • 10 micron and 30 micron available |
| • Equipped with drain cock |
| • Pre-Lubed Gasket standard |
| • 200E has 1" - 12 UNF thread and 200AE has 1 3/8" - 12 UNF Thread |
Cim-Tek 250E and 250AE Series
| • Particulate Filtration |
| • For use with Diesel, Gasoline and Ethanol or Methanol Blends up to 10% |
| • Use with low-volume commercial power pumps |
| • For use on above ground storage tanks, above ground gravity flow dispensing, transfer tanks, day-use tanks |
| • 18 usgpm (68.1 lpm) maximum flow |
| • 50 psi (3.4 bar) maximum working pressure |
| • Resin-impregnated cellulose media |
| • 2 micron, 10 micron and 30 micron available |
| • Not equipped with drain cock |
| • Pre-Lubed Gasket standard |
| • 250E has 1" - 12 UNF thread and 250AE has 1 3/8" - 12 UNF Thread |
Cim-Tek 260HS and 260AHS Series
| • Water Detection and particulate removal |
| • For use with Diesel, Gasoline and Ethanol or Methanol Blends up to 10% |
| • Use with low-volume commercial power pumps |
| • For use on above ground storage tanks, above ground gravity flow dispensing, transfer tanks, day-use tanks |
| • 18 usgpm (68.1 lpm) maximum flow |
| • 50 psi (3.4 bar) maximum working pressure |
| • Water detection and particulate removal media in a single unit. Restricts flow when water detected |
| • 10 micron and 30 micron available |
| • Pre-Lubed Gasket standard |
| • 260HS has 1" - 12 UNF thread and 260AHS has 1 3/8" - 12 UNF Thread |

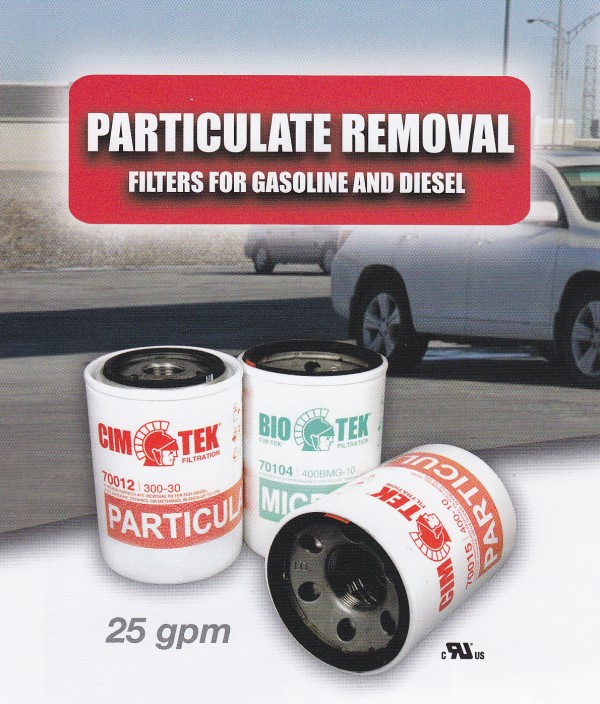

Cim-Tek 300 and 300MG Series
| • Particulate contaminant removal |
| • Compatible with Diesel, Gasoline and Ethanol or Methanol Blends up to 10% |
| • Designed for gasoline or diesel service station pumps and commercial fueling dispensers |
| • 25 usgpm (94.6 lpm) maximum flow |
| • 50 psi (3.4 bar) maximum working pressure |
| • 300 has Cellulose/Microglass Resin-impregnated media, 300MG has High Performance Microglass Media |
| • 300 available in 2 micron,10 micron and 30 micron, 300MG in 10 micron |
| • Pre-Lubed Gasket standard |
| • All have 1" - 12 UNF Thread |

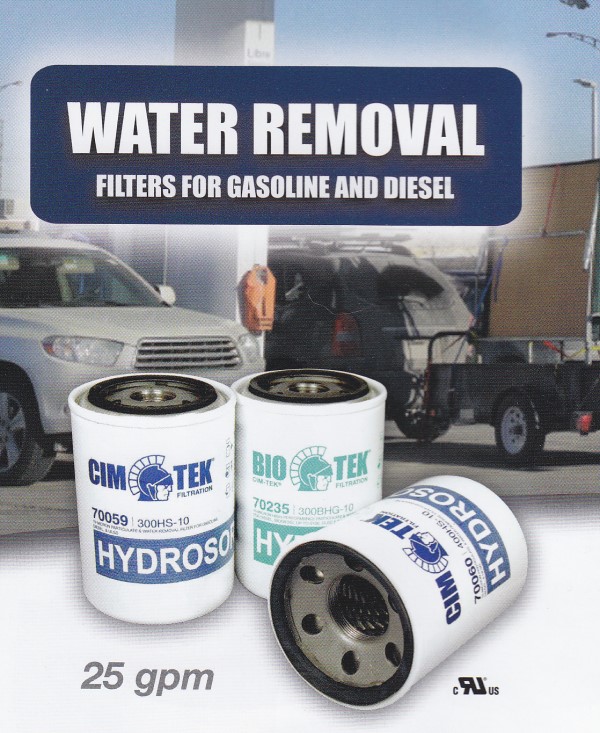

Cim-Tek 300HS and 300HSV Series
| • Simultaneous water detection and Particulate contaminant removal |
| • Compatible with Diesel, Gasoline and Ethanol or Methanol Blends up to 10% |
| • Designed for gasoline or diesel service station pumps and commercial fueling dispensers |
| • 25 usgpm (94.6 lpm) maximum flow |
| • 50 psi (3.4 bar) maximum working pressure |
| • 10 micron and 30 micron Hydrosorb$reg; available |
| • 300HSV Series has spring-activated Hydrostop® valve for quick response |
| • Pre-Lubed Gasket standard |
| • All have 1" - 12 UNF Thread |
Cim-Tek 400 and 400MG Series
| • Particulate contaminant removal |
| • Compatible with Diesel, Gasoline and Ethanol or Methanol Blends up to 10% |
| • Designed for gasoline or diesel service station pumps and commercial fueling dispensers |
| • 25 usgpm (94.6 lpm) maximum flow |
| • 50 psi (3.4 bar) maximum working pressure |
| • 400 has Cellulose/Microglass Resin-impregnated media, 400MG has High Performance Microglass Media |
| • 400 available in 2 micron,10 micron and 30 micron, 400MG in 10 micron |
| • Pre-Lubed Gasket standard |
| • All have 1 1/2" - 16 UNF Thread |
Cim-Tek 400HS and 400HSV Series
| • Simultaneous water detection and Particulate contaminant removal |
| • Compatible with Diesel, Gasoline and Ethanol or Methanol Blends up to 10% |
| • Designed for gasoline or diesel service station pumps and commercial fueling dispensers |
| • 25 usgpm (94.6 lpm) maximum flow |
| • 50 psi (3.4 bar) maximum working pressure |
| • 10 micron and 30 micron Hydrosorb$reg; available |
| • 400HSV Series has spring-activated Hydrostop® valve for quick response |
| • Pre-Lubed Gasket standard |
| • All have 1 1/2" - 16 UNF Thread |
Cim-Tek 450 and 450MG Series
| • High Capacity Particulate contaminant removal |
| • Compatible with Diesel, Gasoline and Ethanol or Methanol Blends up to 10% |
| • Designed for gasoline or diesel service station pumps and commercial fueling dispensers |
| • 25 usgpm (94.6 lpm) maximum flow |
| • 50 psi (3.4 bar) maximum working pressure |
| • 450 has Cellulose/Microglass Resin-impregnated media, 450MG has High Performance Microglass Media |
| • Available in 2 micron,10 micron and 30 micron |
| • Pre-Lubed Gasket standard |
| • All have 1 1/2" - 16 UNF Thread |

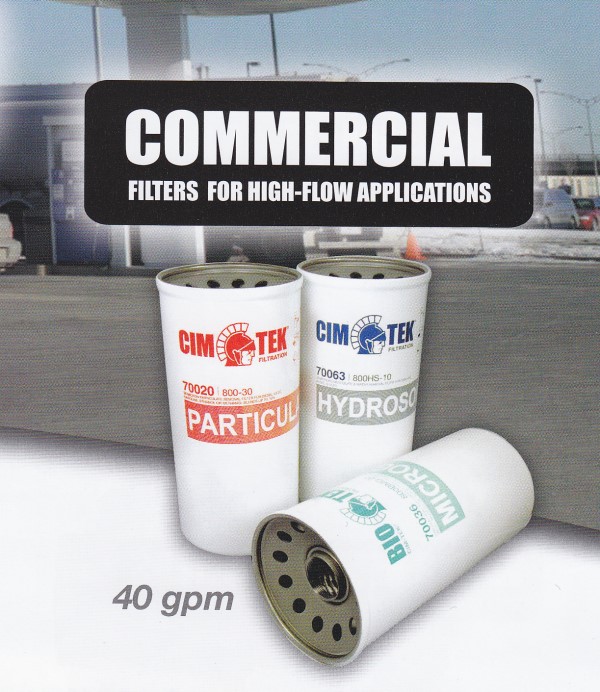

Cim-Tek 800 and 800MG Series
| • Particulate contaminant removal |
| • Compatible with Diesel, Gasoline and Ethanol or Methanol Blends up to 10% |
| • Extended Life filter for high-volume dispensing |
| • 40 usgpm (151 lpm) maximum flow |
| • 50 psi (3.4 bar) maximum working pressure |
| • 800 has Cellulose Resin-impregnated media, 400MG has High Performance Microglass Media |
| • Available in 2 micron,10 micron and 30 micron |
| • Pre-Lubed Gasket standard |
| • All have 1 1/2" - 16 UNF Thread |
Cim-Tek 800HS Series
| • Simultaneous water detection and Particulate contaminant removal for commercial fueling centers |
| • Compatible with Diesel, Gasoline and Ethanol or Methanol Blends up to 10% |
| • Extended Life filter for high-volume dispensing |
| • 40 usgpm (151 lpm) maximum flow |
| • 50 psi (3.4 bar) maximum working pressure |
| • 10 micron and 30 micron Hydrosorb$reg; available |
| • Designed to detect free water, emulsified water and remove particulates |
| • Pre-Lubed Gasket standard |
| • All have 1 1/2" - 16 UNF Thread |

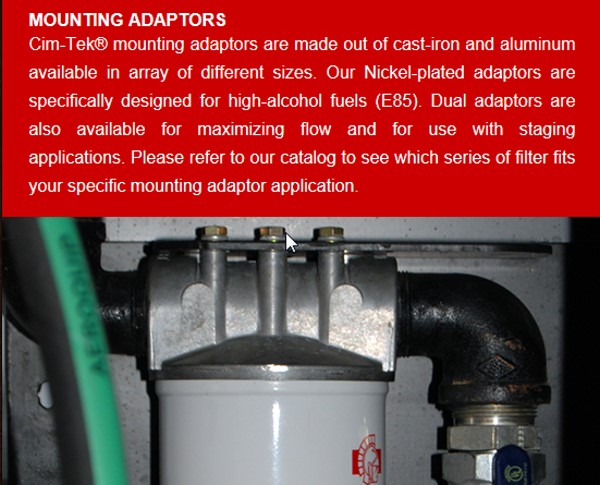

Cim-Tek Cast Iron Adapters
| • 50003 #200H-3-4 for 200E, 250E, 260 and 300 series spin-on filters, 3/4" inlet/outlet, 1" - 12 UNF |
| • 50002 #200H-1 for 200E, 250E, 260 and 300 series spin-on filters, 1" inlet/outlet, 1" - 12 UNF |
| • 50004 #200AH for 200AE, 250AE, 260A series spin-on filters, 1" inlet/outlet, 1 3/8" - 12 UNF |
Cim-Tek Cast Aluminum Adapters
| • 50181 #17047-1 for 200E, 250E, 260 and 300 series spin-on filters, 3/4" inlet/outlet, 1" - 12 UNF |
| • 50032 For 400, 450 series spin-on filters, 1" inlet/outlet, 1 1/2" - 16 UNF |
| • 50109 #805 for 800 series spin-on filters, 1" inlet/outlet, 1 1/2" - 16 UNF |
| • 50163 #810 for 800 series spin-on filters, 1 1/2" inlet/outlet, 1 1/2" - 16 UNF |
| • 50011 #820 for 800 series spin-on filters, 2" inlet/outlet, Dual 1 1/2" - 16 UNF |
Cim-Tek Diesel Exhaust Fluid Adapters
| • 41000 D.E.F. Compatible Chemical-Resistant HDPP Filter Housing / Viton Gaskets, 43 PSI (3.0 Bar) Operating pressure max. 3/4"NPT |
| • 41010 D.E.F. Compatible Specially Designed Stainless Steel Filter Housing / Viton Gaskets, 43 PSI (3.0 Bar) Operating pressure max. 3/4"NPT (1" Available on Request) |
Cim-Tek Diesel Exhaust Fluid Filter Cartridges
| • 31001 D.E.F. 1 Micron Fused HDPP Pleated Filter Cartridge /w Viton Gasket |
| • 31005 D.E.F. 5 Micron Fused HDPP Pleated Filter Cartridge /w Viton Gasket |
| • 31010 D.E.F. 10 Micron Fused HDPP Pleated Filter Cartridge /w Viton Gasket |
Cim-Tek EZ-GRIP Filter Cup
| • 60070 EZ-GRIP Filter Cup for Easier & Spill Free Filter Changes on all types of Fuels - Gasoline, Diesel and Biofuels. |
